Automotive
Aluminum flat rolled products have a wide range of application in the automotive industry as versatile products thanks to their high resistance, lightweight, formability, high resistance to corrosion and features such as absorption of kinetic energy, reduction of vibration, sound and heat insulation.

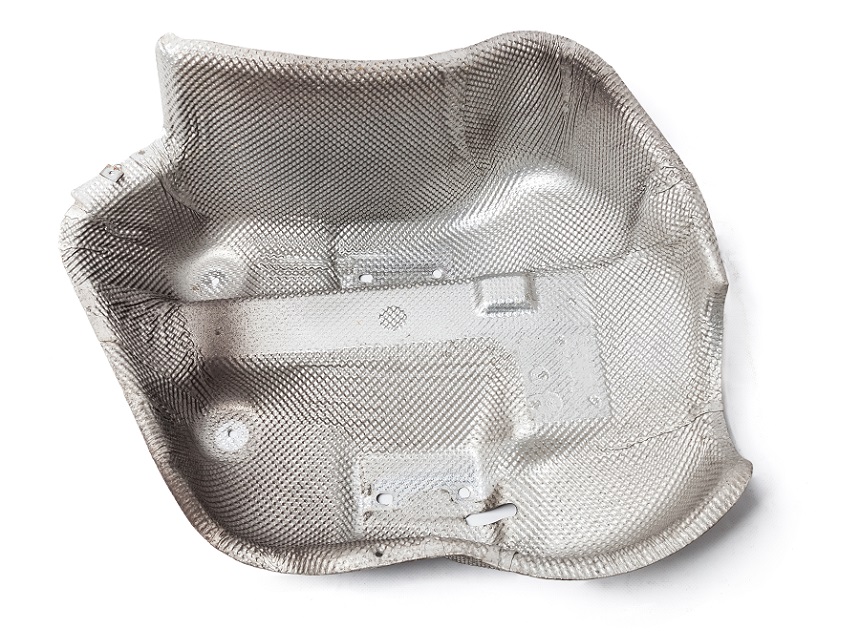

Heat Shields
Heat shields are used in the automotive industry to protect certain parts of the engine and exhaust system of the vehicles from excessive heat and to obtain sound insolation. Properties expected from aluminum flat rolled products used in the heat shield products are:
- Flatness
- High formability
- Precise thickness tolerances
- Heat insulation
- Sound insulation
Properties we recommend for aluminum flat rolled products used in heat shield products are:
Alloys: 1050, 3004, 3005, 5754
Condition: H0
Thickness (mm): 0.02 – 2.00
Width (mm): max. 2200
Length (mm): 400 – 6,000
Surface: Flat
Internal Diameter (mm): 76, 150, 152, 300, 400, 508 (For Strip and Roll)
Standards and Tolerances: All aluminum flat rolled products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.
Side panels for trailers
Side panels are used on the body panels and superstructures of the trailers. Properties expected from aluminum flat rolled products used in these products are:
- Flatness
- Minimum camber
- Special length
- No fissuration on aggressive bending
Product details we recommend for coated or mill finish aluminum flat rolled products used in side panels are:
Alloys: 3003, 3005, 5754, 5182
Condition: H22, H26, H111
Thickness (mm): 1.00 – 4.00
Width (mm): 1000, 1250, 1500, 2000
Surface: Mill finish, Coated
Type of coating: PVDF, PE
Coating thickness (µ): 30
Standards and Tolerances: All aluminum flat rolled products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.
Traffic Signs
Traffic signs are used to ensure harmony and safety in traffic. Properties expected from aluminum flat rolled products used in these products are:
- Flatness
- Minimum camber
- Minimum oiliness
- Special length
- No fissuration on aggressive bending
Product details we recommend for coated or mill finish aluminum flat rolled products used in traffic signs are:
Alloys: 3105, 3003, 3005,
Condition: H24, H26,
Thickness (mm): 1.00 – 4.00
Width (mm): 1000, 1250, 1500, 2000
Surface: Mill Finish, Coated
Type of Coating: PVDF, PE
Coating Thickness (µ):30
Standards and Tolerances: All aluminum flat rolled products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.
License Plates
Manufactured as coated with a special layer of film on all vehicles at the traffic. Properties expected from aluminum strips used in these products are:
- Minimum camber
- Minimum oiliness
- Edge trimming quality
Product details we recommend for coated or mill finish aluminum used in license plates are:
Alloys: 1050
Condition: H18
Thickness (mm): 0.80 – 1.20
Width (mm): 130 - 500
Surface: Mill finish, Coated
Type of coating: PE
Coating Thickness (µ): 25
Standards and Tolerances: All aluminum flat rolled products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.
Trunk Lids
This end use is for the trunk lids of the automobiles, buses and minibuses. Properties expected from aluminum flat rolled products used in these products are:
- Flatness
- Minimum camber
- Minimum oiliness
- No fissuration on aggressive bending
Product details we recommend for coated or mill finish aluminum used in trunk lids are:
Alloys: 3003, 3005, 5754
Condition: H26, H111
Thickness (mm): 1.00 – 4.00
Width (mm): 1000, 1250, 1500, 2000
Surface: Mill Finish, Coated
Type of coating: PE
Coating Thickness (µ): 25
Standards and Tolerances: All aluminum flat rolled products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.
