Providing advantages both indoors and outdoors thanks to features such as light weight, resistance against weather conditions, high insulation, etc., aluminum is preferred with its decorative and architectural features in the recent years. Providing easy and cost-effective installation, aluminum, also contributes to the energy efficiency where it is used.

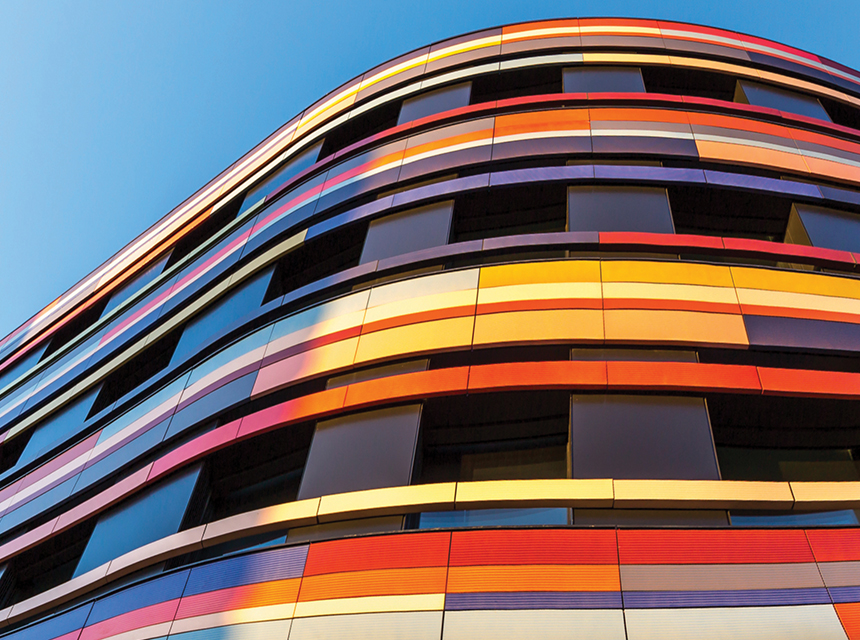

Composite Panel

akordeon_yapi_kompozitpanel

Aluminum composite panel is usually used as a siding product in the construction industry. Properties expected from aluminum plates used in the composite panels are;

  • Flatness,
  • Precise thickness tolerances,
  • Plasticity,
  • No cracks on the rough bends,
  • Attachment to surface,
  • No difference in color tones.

Product details we recommend for painted or natural aluminum used in aluminum composite panels:

Alloys: 3003, 3005, 3103, 3105, 5005, 1100

Condition:  H14, H24, H16, H26

Thickness (mm):  0.15 – 0.60

Width (mm): 1250, 1500, 2000

Surface: Flat, Painted

Internal Diameter (mm): 508

Paint: PVDF, PE, HDP

Paint Thickness (µ): 30

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

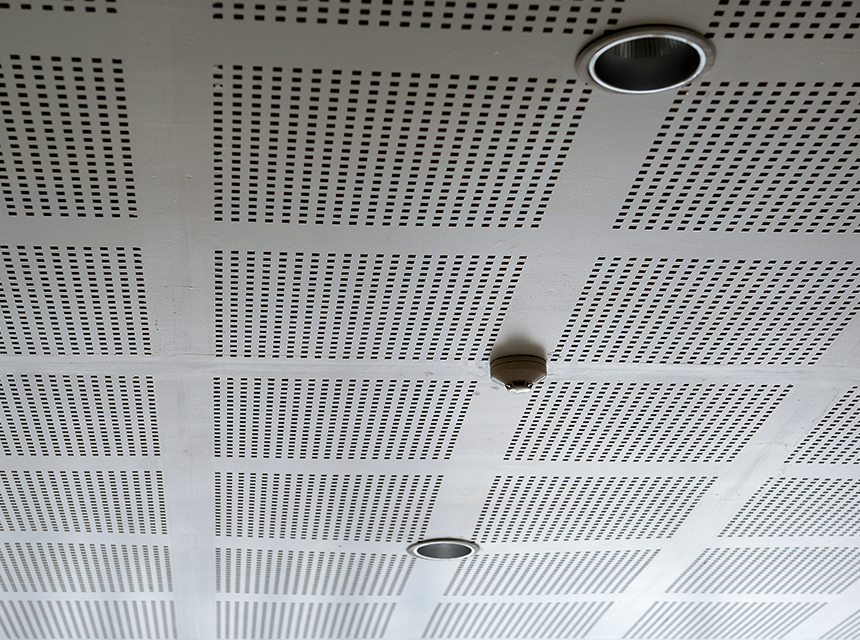

Suspended Ceiling

akordeon_yapi_asmatavan

False ceilings are used in areas such as indoor offices, airports, malls, public halls, etc. Properties expected from aluminum strips used in suspended ceiling products are;

  • Flatness,
  • Precise thickness tolerances,
  • Plasticity, = ?
  • No cracks on the rough bends
  • Attachment to surface,
  • No difference in color tones.

Product details we recommend for painted or natural aluminum used in aluminum false ceiling panels;

Alloys: 3003, 3105
Condition:  H16, H26, H46
Thickness (mm): 0.40 – 1.00
Width (mm):110 – 1000
Surface:Flat, Painted
Internal Diameter (mm): 508
Paint:  PE
Paint Thickness (µ):25 - 30
Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

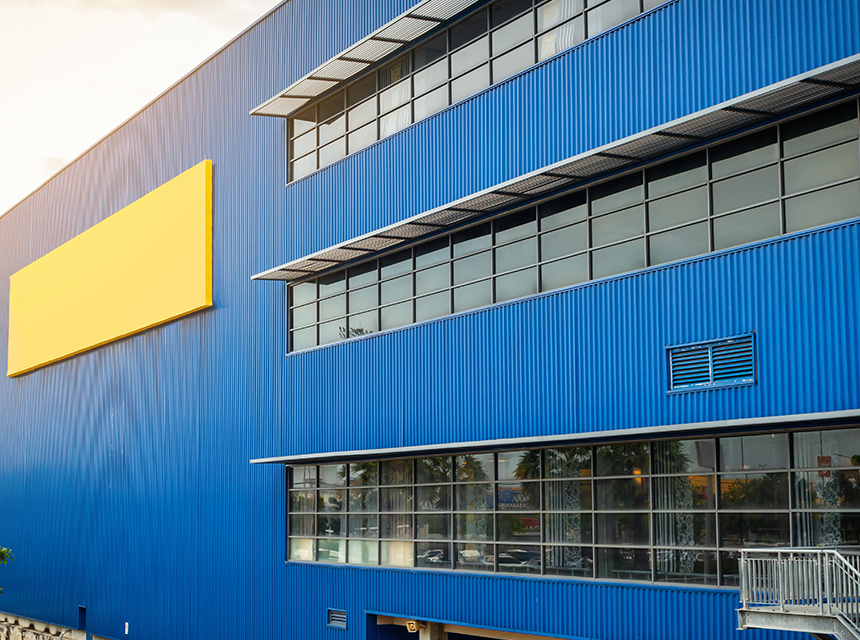

Trapezoid , Clamped Roof & Sandwich Panel

akordeon_yapi_cati_trapez

Trapezoid , Clamped Roof  &Sandwich Panel products are usually used in buildings such as factories, warehouses, malls, etc. for roofing and siding purposes. Properties expected from aluminum plates used in Trapezoid , Clamped Roof  & Sandwich Panel products are;

  • Flatness,
  • Precise thickness tolerances,
  • Plasticity,
  • Allowing to be painted,
  • Allowing to be embossed,
  • Bending without cracking,
  • Attachment to surface,
  • No difference in color tones.

Product details we recommend for painted or natural aluminum used in ceiling, cladding and sandwich panels are;

Alloys: 1XXX, 3003, 3005, 3103, 3105, 5005

Condition: H14, H24, H16, H26, H18, H28

Thickness (mm): 0.40 – 1.00

Width (mm):  1050 - 1750

Surface: Flat, Embossed, Painted

Internal Diameter (mm): 508

Paint Thickness (µ): 25 - 30

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

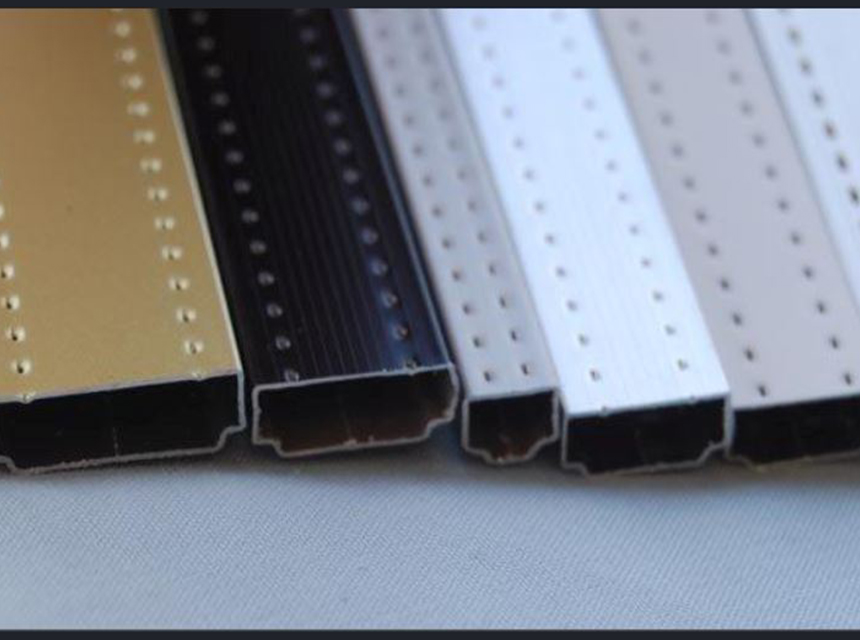

Windows Spacer

akordeon_yapi_isicam_cita_profili

Window Spacer products are used in double glazed door and window applications in order to improve heat and sound insulation between two window glasses. Properties expected from aluminum strips used in windows spacer products are;

  • Flatness,
  • Minimum camber,
  • Precise thickness tolerances,
  • Plasticity,
  • No cracks on the rough bends,
  • Formability,
  • Edge cutting quality,
  • Allowing to be welded.

Properties we recommend for aluminum strips used in double glazed window slat profiles are;

Alloys: 3003, 3005, 3105

Condition:  H16, H26, H19

Thickness (mm): 0.18 – 0.40

Width (mm) 12.5 - 50

Surface: Flat

Internal Diameter (mm): 508



Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

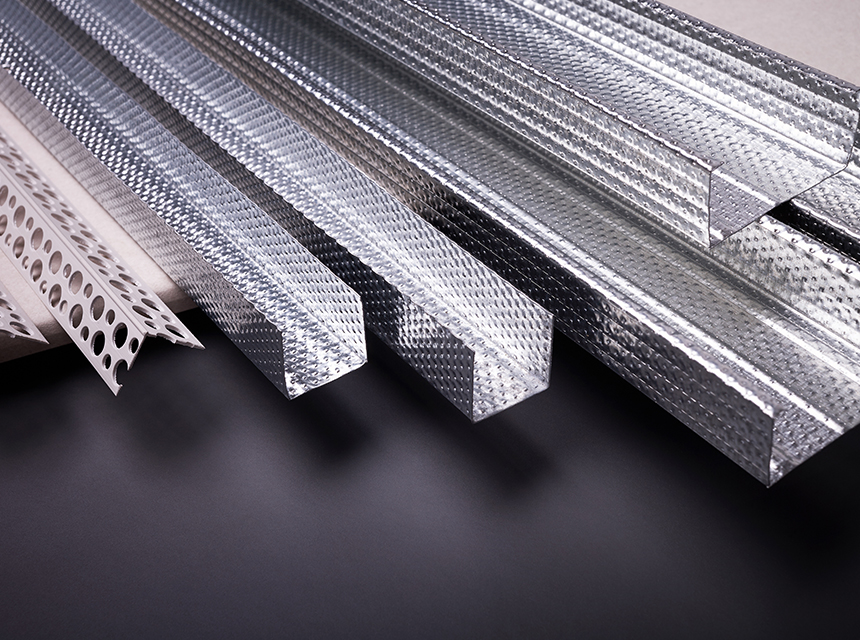

Corner Profiles

akordeon_yapi_alcipan_citasi

Corner profiles are used to ensure strength against impact on the corners of the plasterboard walls of the buildings. Properties expected from aluminum strips used in corner profile products are;

  • Flatness,
  • Minimum camber,
  • No cracks on the rough bends,
  • Plasticity,
  • Edge cutting quality,

Properties we recommend for aluminum strips used in corner profiles are;

Alloys: 1050, 3105, 3003

Condition:  H18, H19, H26

Thickness (mm): 0.25 – 0.40

Width (mm): 26 - 50

Surface: Flat

Internal Diameter (mm): 508

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

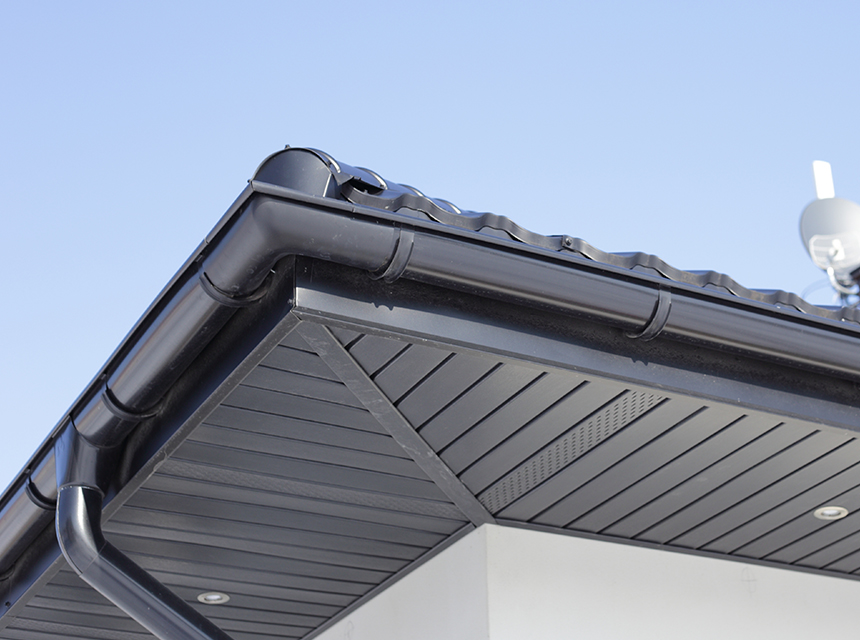

Gutter

akordeon_yapi_yağmur_olugu

Gutters are used to transfer rain water to the canalization systems without leaks and without damaging the buildings in the exterior of the buildings. Properties expected from aluminum rolls used in these products are;

  • Flatness,
  • Minimum camber,
  • No cracks on the rough bends,
  • Plasticity,
  • Edge cutting quality
  • No difference in color tones of the painted products.

Product details we recommend for painted or natural aluminum used in gutter products are;

Alloys: 1XXX, 3003, 3105

Condition: H16, H26, H46

Thickness (mm): 0.60 – 1.00

Width (mm): 1000 - 1250

Surface: Flat, Embossed, Painted

Internal Diameter (mm): 508

Paint Thickness (µ): 25 - 30

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

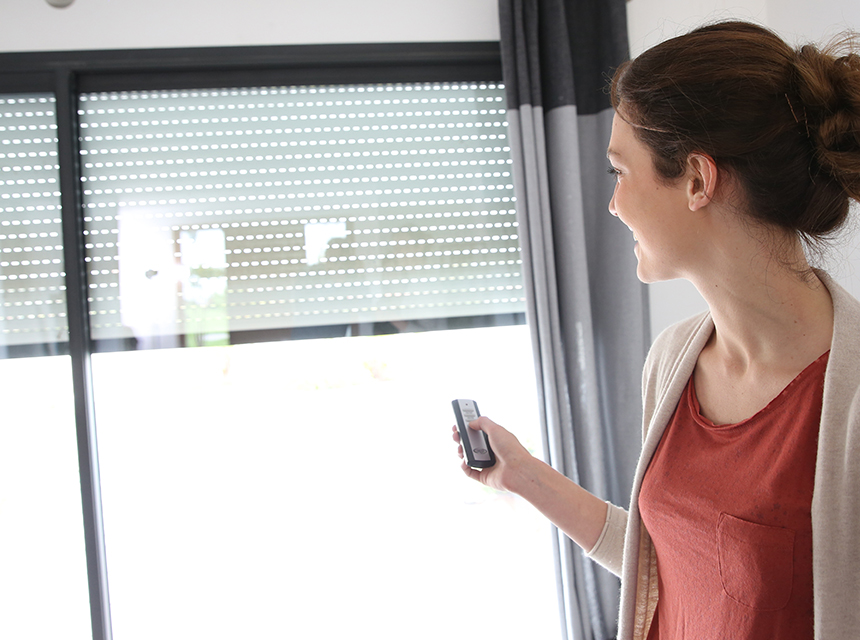

Roller Shutter & Garage Doors

akordeon_yapi_panjur_garaj_kapisi

Used for prevention of sunlight and wind, reduce lighting, and provision of heat insulation on the external façades of the buildings. Properties expected from aluminum strips used in these products are;

  • Minimum camber,
  • No cracks on the rough bends,
  • Plasticity,
  • Edge cutting quality,
  • Proper adhesion to filling material,
  • No difference in color tones.

Properties we recommend for aluminum strips used in blinds or garage doors are;

Alloys: 3005, 3003

Condition: H18, H19, H26

Thickness (mm): 0.25 – 0.40

Width (mm): 26 - 50

Surface: Flat

Internal Diameter (mm): 508

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

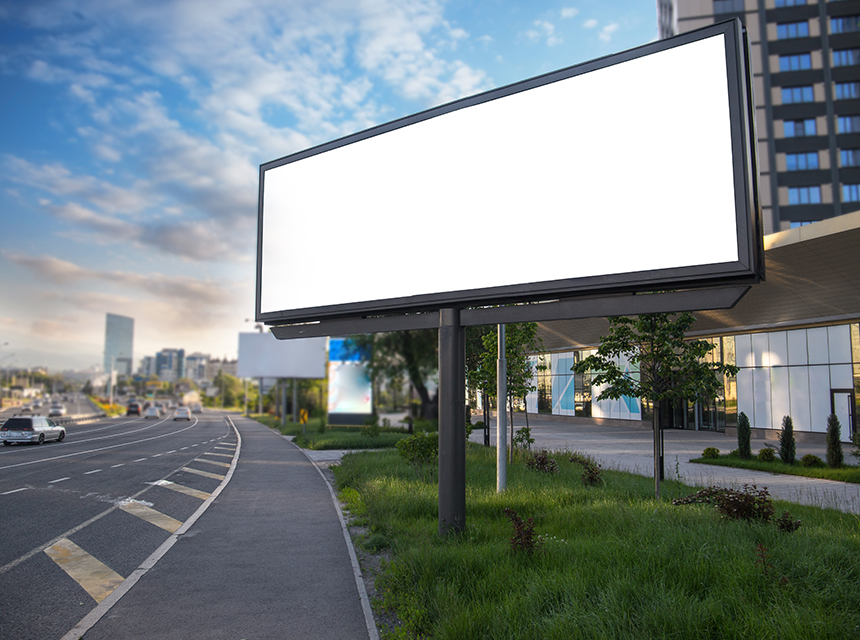

Sign Board

akordeon_yapi_reklam_panosu

Used for bringing the brand forth in gas stations, canopy fronts, façade signs, totems, guiding panels, and supermarket shelves. Properties expected from aluminum plates used in these products are;

  • Flatness,
  • Minimum camber,
  • Special sizing
  • No cracks on the rough bends,
  • No difference in color tones.

Product details we recommend for painted or natural aluminum used in billboards are;

Alloys: 1050, 3003, 3105

Condition: H14, H24, H26, H46

Thickness (mm): 1.00 – 4.00

Width (mm): 1000, 1250, 1500, 2000

Surface: Flat, Painted

Paint: PVDF, PE, HDP

Paint Thickness (µ): 30

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

Facede

akordeon_yapi_dis_cephe_kaplama

Used for prevention of sunlight and wind, and for improving insulation as an alternative to the composite panel on the exterior façades of the buildings; and also for complementing the architectural style of the building aesthetically. Properties expected from aluminum plates used in these products are;

  • Flatness,
  • Minimum camber,
  • Special sizing
  • No cracks on the rough bends,
  • No difference in color tones.

Properties we recommend for aluminum plates used in exterior sidings are;

Alloys:  3105, 3003, 3005, 5005

Condition: H16, H26

Thickness (mm): 1.00 – 4.00

Width (mm):  1000, 1250, 1500, 2000

Surface:  Flat, Painted

Paint:  PE, PVDF, HDP

Paint Thickness (µ): 30

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.
